-40℃ Chest Deep Freezer - 300L

Application:

-40℃ Deep Freezer is specially designed for long term storage of various biological products and deep sea foods. It can be installed in institutions including blood banks, hospitals, epidemic prevention services, research institutes and laboratories for electronic and chemical plants, biological engineering institutes and marine fishery companies.


And it is especially suitable for the long-term preservation of precious deep-sea high-nutrition fish.

Temperature Control

Microprocessor control, Large LED display inner temperature clearly, and with easy view;

The inner temperature can be adjustable at the range of -10℃~-45℃;


Safety Control

Malfunction alarms: high temperature alarm, low temperature alarm, over temperature alarm system, set the alarm temperature as requirements;

Two alarming methods: buzzer alarming and digital flashing alarming;

Protection function: power-on delay, time between stops.


Refrigeration System

Optimized cascade refrigeration technology, SECOP compressor to reach a high efficient refrigeration effect;

Specially designed Heat Exchanger, high efficient heat transfer,energy conservation;

Single compressor efficient thermal cycle refrigeration technology, low noise, more energy efficiency;

CFC-Free overall polyurethane foaming insulation;

CFC-Free refrigerant.


Ergonomic Design

Safety door lock, preventing unauthorized access;

Wide voltage design from 192V to 242V;

Equipped with storage basket;

Heavy type caster and locking with adjustable screw, easy to move and fix.

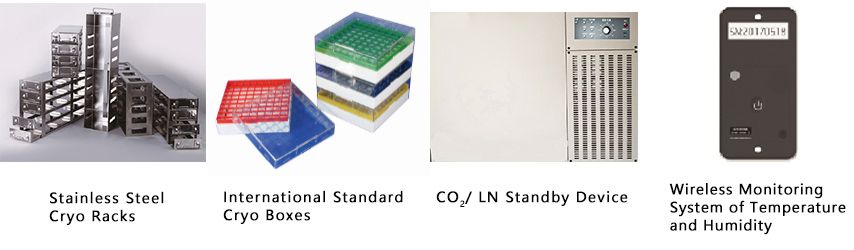

Optional Accessories

ModelDW-40W100 DW-40W200DW-40W300DW-40W400DW-40W500
Technical DataCabinet TypeChestChestChestChestChest
Climate ClassNNNNN
Cooling TypeDirect cooling
Defrost ModeManual
RefrigerantCFC-Free
PerformanceCooling performance(℃)-45-45-45-45-45
Temperature Range(℃) -10~-45 -10~-45 -10~-45 -10~-45 -10~-45
ControlControllerMicroprocessor
DisplayLED
MaterialInterior Aluminum powder coating
Exterior Galvanized steel powder coating
Electrical DataPower Supply(V/Hz)220/50220/50220/50220/50220/50
Power(W)100350350350350
DimensionsCapacity(L)100190285380470
Net/Gross Weight(approx)40/55 (kg)70/85 (kg)76/93(kg)93/110 (kg)110/130 (kg)
Interior Dimensions(W*D*H)520×345×615 (mm)760×485×600 (mm)1080×485×600 (mm)1340×485×600 (mm)1710×485×600 (mm)
Exterior Dimensions(W*D*H)700×600×850 (mm)940×765×885 (mm)1270×765×885 (mm)1530×765×885 (mm)1900×765×885 (mm)
Packing Dimensions(W*D*H)800×700×1000 (mm)950×870×1035 (mm)1370×870×1035 (mm)1630×870×1035 (mm)2000×870×1035 (mm)
FunctionsHigh/Low TemperatureYYYYY
Sensor ErrorYYYYY
LockageYYYYY
AccessoriesCasterYYYYY
FootN/AN/AN/AN/AN/A
Test HoleN/AN/AN/AN/AN/A
Baskets/Inner Doors2/-2/-2/-2/-2/-
Temperature RecorderOptionalOptionalOptionalOptionalOptional
Cryo racksOptionalOptionalOptionalOptionalOptional
