-25℃/+4 Combined Refrigerator and Freezer with Solid doors

Application:

Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.

Designed to store pharmaceuticals, medicine, vaccines, biological materials, testing reagents and laboratory materials.


ModelKYCD-450
Technical DataCabinet   typeVertical
Climate classN
Cooling typeDirect cool and forced air with multi air flow
Defrost modeRefrigerator: Auto, Freezer: Manual
CompressorInverter compressor
RefrigerantR600a,  CFC free
PerformanceCooling   performance() +4 / -20
Temperature range()Refrigerator: 2 to 8, Freezer: -10 to -20
Construction MaterialInterior finishStainless steel AISI 304
Exterior shell finishGalvanized steel with powder coating
Outer doors finish2 solid doors in stainless steel
InsulationHigh density PUF
ControlTemperature   controllerMicroprocessor
DisplayLED digital, Accuracy 0.1
Alarm modeVisual and Audio
DimensionsCapacity(L)500L, Refrigerator: 310L, Freezer: 190L
Compartments Freezer: 2 / Fefrigerator: 3
Net/Gross Weight(approx)158/185 (kg)
Exterior Dimensions(W*D*H)775×715x1935 mm
Packing Dimensions(W*D*H)830x760x2035mm
Electrical   DataPower   Supply220-240V/50Hz, Single phase, European plug
FunctionsHigh/Low   temperature alarmYes
Sensor error alarmYes
Remote alarm contactYes
Door open alarmYes
AccessoriesCasters 4 ( 2 lockable)
Door keylockYes
Test holeYes
Adjustable shelvesRefrigerator:3  / Freezer: 2
Automatic voltage regulatorYes


Temperature Control

Microprocessor control, Large LED display inner temperature clearly, and with easy view

The inner temperature can be adjustable at the range of 2℃~8℃ and -10℃~ -20℃, with an increment of 0.1;


Safety Control

Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Door jammed, Over temperature alarm system, set the alarm temperature as requirements;

Three alarming methods: buzzer alarming, digital flashing alarming and Remote alarm;

Protection function: power-on delay, time between stops;


Refrigeration System

Highly efficient famous brand compressor and fan;, with a high efficient refrigeration effect;

Forced-Air Circulation with multi airflow and special air ducts to guarantee inner temperature consistency.

Large area of the evaporator design, cooling strong and high temperature uniformity, While effectively suppressing frost, reducing defrosting process.

CFC-Free/HCFC refrigerant.


Ergonomic Design

Safety door lock, preventing unauthorized access;

Auto defrost function guarantees a good performance in high ambient temperature and humidity area;

Wide voltage design from 192V to 242V;

Inner LED lighting(Refrigerator compartment) and casters design;

Adjustable shelves design;

No condensation glass door option;

Stopper on rear against back wall.

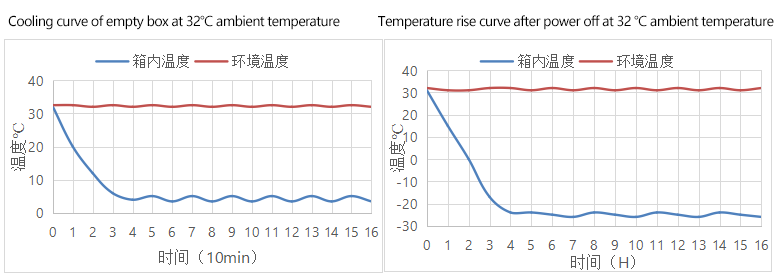

Performance Curve
