Combined Refrigerator and Freezer with Solid Doors

Application:

Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.


Designed to store pharmaceuticals, medicine, vaccines, biological materials, testing reagents and laboratory materials.


ModelKYCD-450
Technical   SpecificationCabinet TypeUpright, Floor standing
Climate ClassN
Cooling TypeRefrigerator: Forced air cooling,   Freezer: Direct cooling
Defrost ModeRefrigerator: Auto, Freezer: Manual
RefrigerantR600a
PerformanceSet Point(℃) 4 /   -25
Temperature   Range (℃)Refrigerator: 2~8, Freezer: -10~-25   (-10 ~-40 option)
Control SystemControllerMicroprocessor
Display TypeLED display, resolution 0.1
MaterialExterior MaterialPre coated steel
Interior   MaterialAluminium sheet with coating
Insulation   MaterialPolyurethane
DimensionsCapacity(L)Refrigerator: 310L;Freezer: 139L
Interior   Dimension (W*D*H)Refrigerator: 655×570×830mm
Freezer: 575×550×440mm
Exterior Dimension (W*D*H)770×715×1935mm
Insulation   thickness55mm
Electrical DataVoltage   (V/Hz)220/50 (115/60 option)
Power(W)370
FunctionsLow/High temperature alarmYES
Sensor failure   alarmYES
Remote alarm   contactYES
Power failure   alarmOptional
Door open   alarmYES
Alarm modeAudible and Visual Alarm
AccessoriesCastors with brakeYES
Test PortYES
Removable wire   steel shelvesRefrigerator: 3 / Freezer: 2
LED LightRefrigerator
Door keylockYES
Door HandleYES


Temperature Control

Microprocessor control, Large LED display inner temperature clearly, and with easy view.

The inner temperature can be adjustable at the range of 2℃~8℃ and -10℃~ -25℃, with an increment of 0.1.

The Lowest and Highest temperature recorded value record.


Safety Control

Malfunction alarms: high temperature alarm, low temperature alarm, Power failure alarm, Door jammed, Sensor error alarm, Backup battery for alarm, set the alarm temperature as requirements.

Three alarming methods: Visual, Audio, Remote alarm contact

Protection function: power-on delay, stop with intervals.


Refrigeration System

Highly efficient famous brand compressor and fan, with a high efficient refrigeration effect.

Forced-Air Circulation for large airflow with special air ducts to guarantee inner temperature consistency.

Large area of the evaporator design, cooling strong and high temperature uniformity, While effectively suppressing frost, reducing defrosting process.

CFC and HCFC free refrigerant.


Ergonomic Design

Safety door lock, preventing unauthorized access.

Auto defrost function guarantees a good performance in high ambient temperature and humidity area.

Wide voltage design from 192V to 242V.

Inner LED lighting and caster design.

Adjustable shelves design.

No condensation glass door.

Solid door is optional.

Rear stopper against back wall.

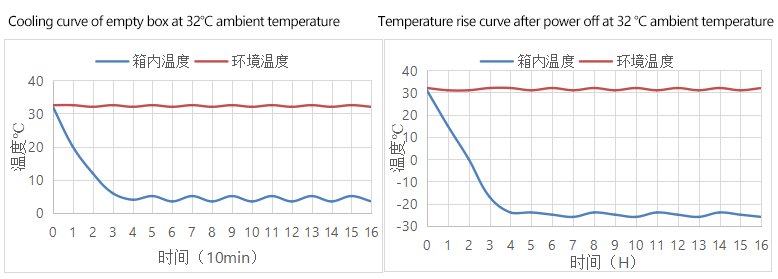

Performance Curve
